INDUCT ARRAY 2 COIL 10.3UH SMD

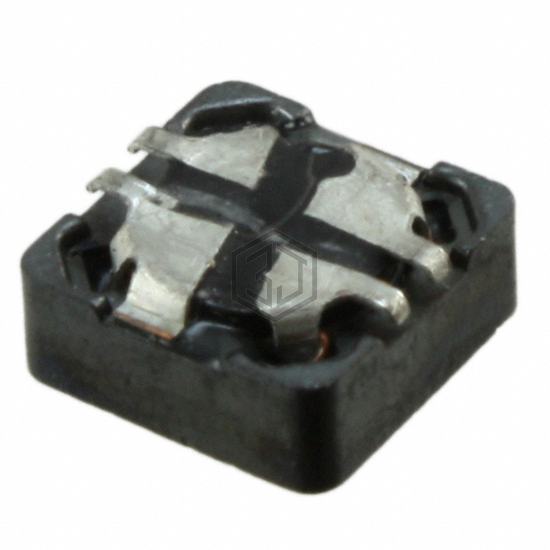

DRQ73-100-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 10.3UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.299" L x 0.299" W (7.60mm x 7.60mm).
In Stock: 51,324
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 10.3 µH |
| Inductance - Connected In Series | 41.2 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 2.08 A |
| Current Rating - Series | 1.04 A |
| Current Saturation - Parallel | 2.47 A |
| Current Saturation - Series | 1.24 A |
| DC Resistance (DCR) - Parallel | 65.6mOhm |
| DC Resistance (DCR) - Series | 262.3mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.140" (3.55mm) |
Submit your RFQ for DRQ73-100-R and get a quote within 24 hours.
