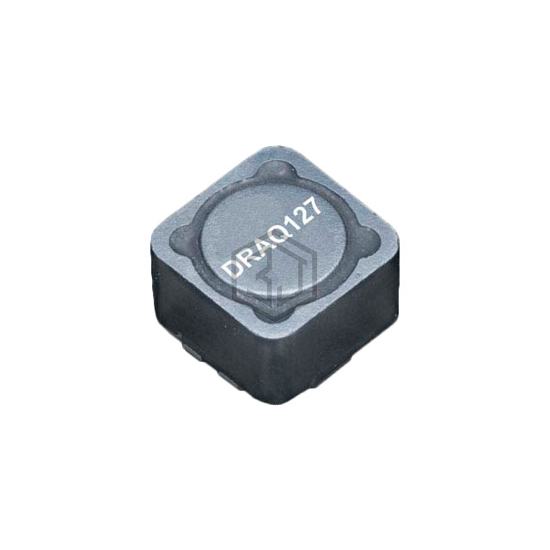

INDUCT ARRAY 2 COIL 9.63UH SMD
DRAQ127-100-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 9.63UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 165°C, package / case Nonstandard, size / dimension 0.480" L x 0.480" W (12.20mm x 12.20mm).
In Stock: 2,026
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 9.63 µH |
| Inductance - Connected In Series | 38.5 µH |
| Tolerance | ±25% |
| Current Rating - Parallel | 6.02 A |
| Current Rating - Series | 3.01 A |
| Current Saturation - Parallel | 8.96 A |
| Current Saturation - Series | 4.48 A |
| DC Resistance (DCR) - Parallel | 22mOhm Max |
| DC Resistance (DCR) - Series | 89mOhm Max |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 165°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Height | 0.315" (8.00mm) |
Submit your RFQ for DRAQ127-100-R and get a quote within 24 hours.
