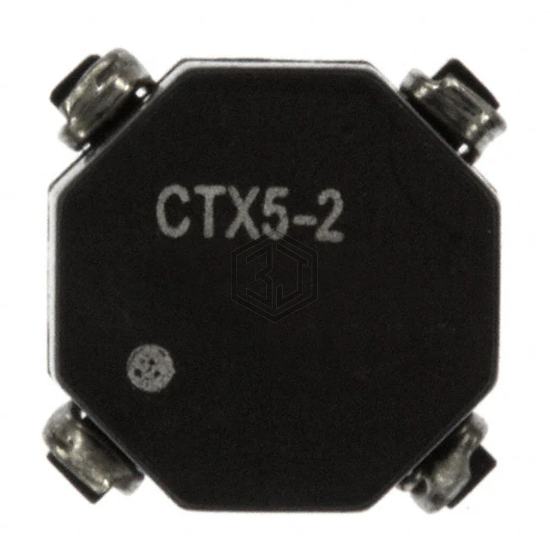

INDUCT ARRAY 2 COIL 4.7UH SMD
CTX5-2-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 4.7UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, size / dimension 0.450" L x 0.450" W (11.43mm x 11.43mm).
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 4.7 µH |
| Inductance - Connected In Series | 18.8 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 3 A |
| Current Rating - Series | 1.5 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 21mOhm Max |
| DC Resistance (DCR) - Series | 84mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Height | 0.235" (5.97mm) |
Submit your RFQ for CTX5-2-R and get a quote within 24 hours.
