INDUCT ARRAY 2 COIL 34.8UH SMD

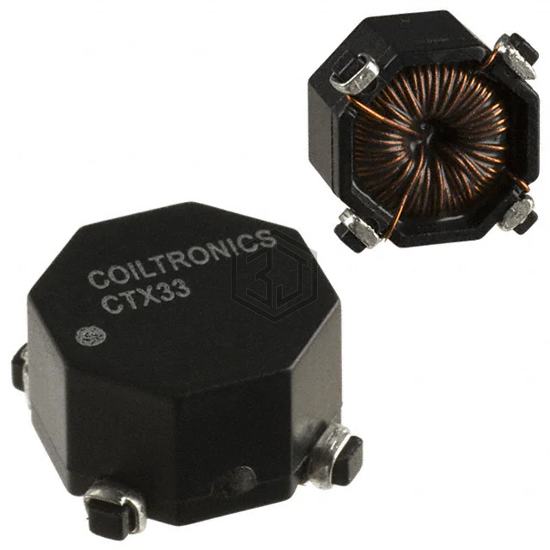

CTX33-4A-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 34.8UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, size / dimension 0.550" L x 0.550" W (13.97mm x 13.97mm).
In Stock: 998
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 34.8 µH |
| Inductance - Connected In Series | 139.2 µH |
| Tolerance | ±25% |
| Current Rating - Parallel | 2.49 A |
| Current Rating - Series | 1.25 A |
| Current Saturation - Parallel | 2.25 A |
| Current Saturation - Series | 1.13 A |
| DC Resistance (DCR) - Parallel | 71mOhm Max |
| DC Resistance (DCR) - Series | 283mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Height | 0.250" (6.35mm) |
Submit your RFQ for CTX33-4A-R and get a quote within 24 hours.
