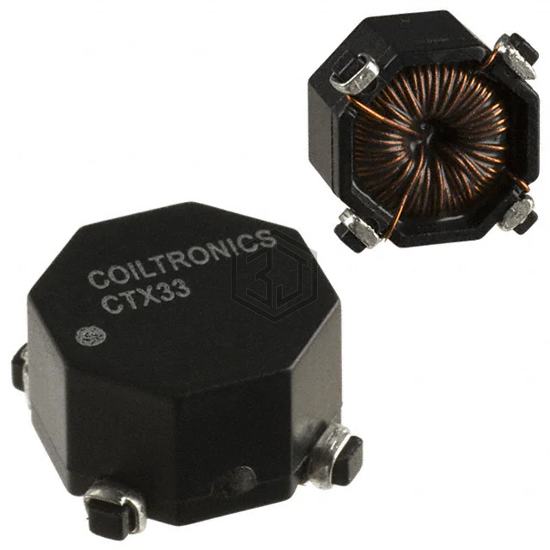

INDUCT ARRAY 2 COIL 32.86UH SMD
CTX33-3-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 32.86UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, size / dimension 0.550" L x 0.550" W (13.97mm x 13.97mm).
In Stock: 3,013
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 32.86 µH |
| Inductance - Connected In Series | 131.42 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 960 mA |
| Current Rating - Series | 480 mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 83mOhm Max |
| DC Resistance (DCR) - Series | 331mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Height | 0.190" (4.83mm) |
Submit your RFQ for CTX33-3-R and get a quote within 24 hours.
