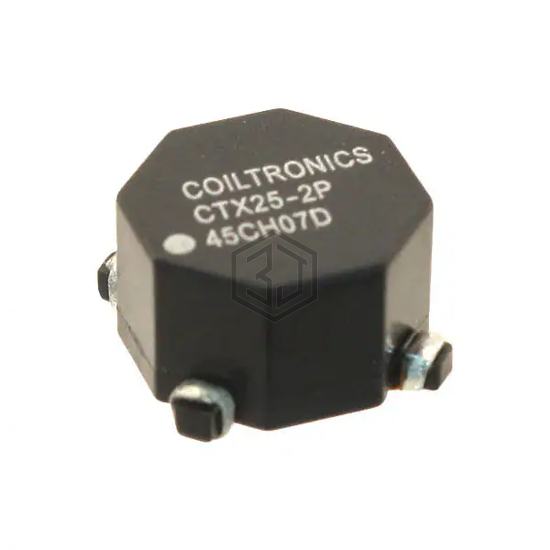

INDUCT ARRAY 2 COIL 24.79UH SMD
CTX25-2P-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 24.79UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, size / dimension 0.450" L x 0.450" W (11.43mm x 11.43mm).
In Stock: 1,124
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 24.79 µH |
| Inductance - Connected In Series | 99.14 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 1.4 A |
| Current Rating - Series | 700 mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 109mOhm Max |
| DC Resistance (DCR) - Series | 436mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Height | 0.235" (5.97mm) |
