INDUCT ARRAY 2 COIL 99.23UH SMD

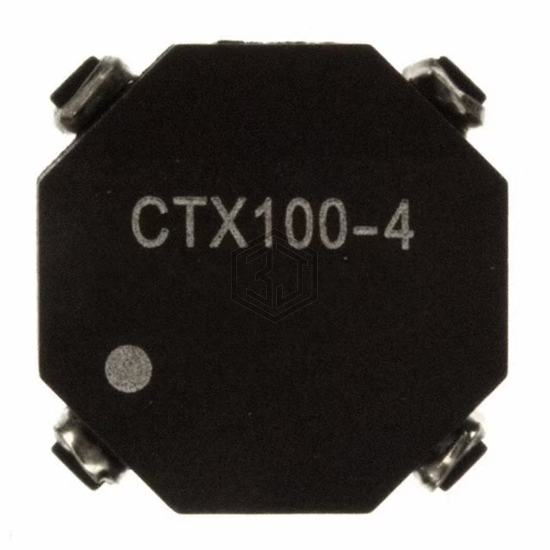

CTX100-4-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 99.23UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, size / dimension 0.550" L x 0.550" W (13.97mm x 13.97mm).
In Stock: 2,323
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 99.23 µH |
| Inductance - Connected In Series | 396.9 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 920 mA |
| Current Rating - Series | 460 mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 302mOhm Max |
| DC Resistance (DCR) - Series | 1.21Ohm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Height | 0.250" (6.35mm) |
