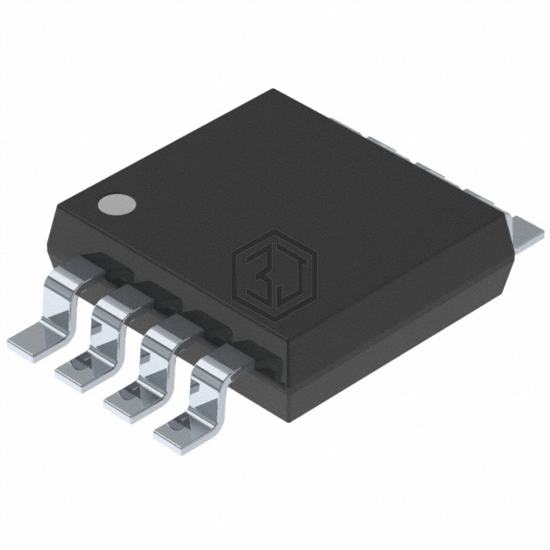

IC SPST ANALOG SW 8-MSOP
PS301CUA is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SPST ANALOG SW 8-MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 1.
In Stock: 3,209
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 2.5V ~ 16 V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
PS301CUA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX320ESA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8SOIC | 89% | View |
| MAX399ESE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16SOIC | 87% | View |
| MAX4515EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 72% | View |
| MAX4530EAP+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 20SSOP | 64% | View |
| MAX4558ESE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 61% | View |
| DG401DY-E3 | Vishay Siliconix | IC ANALOG SWITCH SPDT 16SOIC | 60% | View |
