Analog Devices Inc./Maxim Integrated

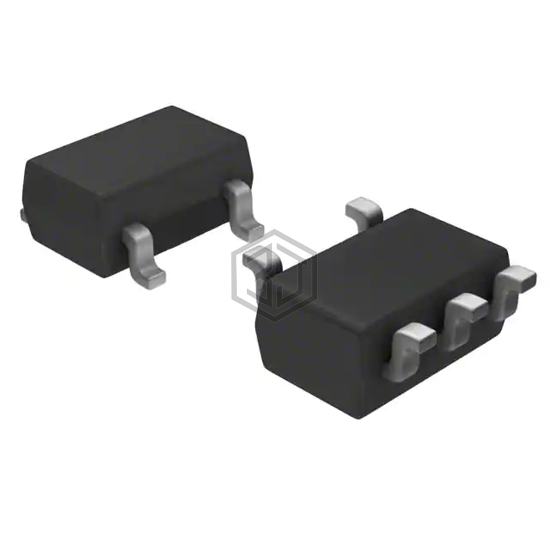

IC SWITCH SPST SOT23-5
MAX4515EUK+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, number of circuits 1.
In Stock: 2,473
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 20Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4530EAP+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 20SSOP | 81% | View |
| MAX4558ESE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 80% | View |
| MAX4576EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 78% | View |
| DG401DY-E3 | Vishay Siliconix | IC ANALOG SWITCH SPDT 16SOIC | 76% | View |
| MAX4560ESE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER TRPL 1X2 16SOIC | 66% | View |
| DG403BDY-T1-E3 | Vishay Siliconix | IC ANALOG SWITCH SPDT 16SOIC | 65% | View |
Submit your RFQ for MAX4515EUK+T and get a quote within 24 hours.
