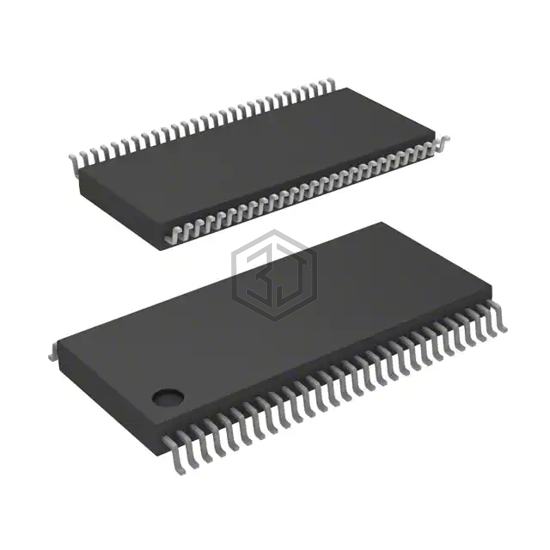

IC FF D-TYPE DUAL 9BIT 56TSSOP
PI74ALVCH16823A is a Logic - Flip Flops manufactured by Diodes Incorporated. IC FF D-TYPE DUAL 9BIT 56TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.3V ~ 3.6V, package / case 56-TFSOP (0.240", 6.10mm Width).
In Stock: 5,424
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 2 |
| Number of Bits per Element | 9 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | - |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 2.3V ~ 3.6V |
| Current - Quiescent (Iq) | 40 µA |
| Input Capacitance | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-TSSOP |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
PI74ALVCH16823A is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74ALVCH16823DL | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56SSOP | 98% | View |
| SN74LVC823APWR | Texas Instruments | IC FF D-TYPE SNGL 9BIT 24TSSOP | 83% | View |
| SN74LVC823APWT | Texas Instruments | IC FF D-TYPE SNGL 9BIT 24TSSOP | 83% | View |
| SN74ABTH16823DLR | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56SSOP | 79% | View |
| SN74ABT16823DLR | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56SSOP | 78% | View |
| SN74ABT16823DGVR | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56TVSOP | 78% | View |
Submit your RFQ for PI74ALVCH16823A and get a quote within 24 hours.
