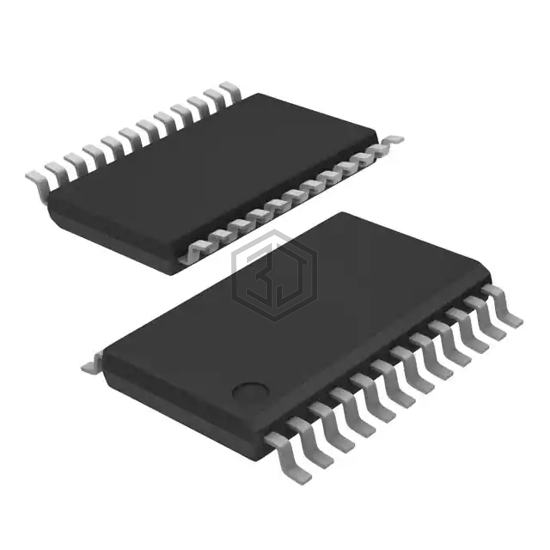

IC FF D-TYPE SNGL 9BIT 24TSSOP
SN74LVC823APWT is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 9BIT 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.65V ~ 3.6V, package / case 24-TSSOP (0.173", 4.40mm Width).
In Stock: 725
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 9 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 8ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Iq) | 10 µA |
| Input Capacitance | 5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-TSSOP |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC823APWR | Texas Instruments | IC FF D-TYPE SNGL 9BIT 24TSSOP | 100% | View |
| SN74LVC823ADWR | Texas Instruments | IC FF D-TYPE SNGL 9BIT 20SOIC | 100% | View |
| SN74LVC823ANSRG4 | Texas Instruments | IC FF D-TYPE SNGL 9BIT 24SO | 100% | View |
| SN74ALVCH16823DLR | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56SSOP | 80% | View |
| SN74ALVCH16823DL | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56SSOP | 80% | View |
| SN74ABTH16823DLR | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56SSOP | 72% | View |
Submit your RFQ for SN74LVC823APWT and get a quote within 24 hours.
