IC PWR SWITCH N-CHAN 1:1 8SOIC

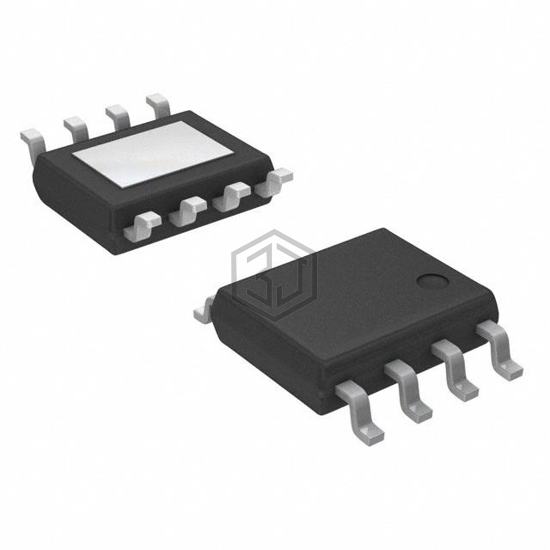

PI5USB2549WAEX is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - load 4.5V ~ 5.5V, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad.
In Stock: 3,280
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 2.5A |
| Rds On (Typ) | 65mOhm |
| Input Type | - |
| Features | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC-EP |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
PI5USB2549WAEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP2820EMTR-G1 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8SOIC | 91% | View |
| AP2820GMMTR-G1 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8MSOP | 91% | View |
| ABP2820EMMTR-G1 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8MSOP | 91% | View |
| ABP2820GMMTR-G1 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8MSOP | 91% | View |
| TPS2560DRCT | Texas Instruments | IC PWR SWITCH N-CHAN 1:2 10VSON | 77% | View |
| BTS721L1XUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-20 | 74% | View |
Submit your RFQ for PI5USB2549WAEX and get a quote within 24 hours.
