IC PWR SWITCH N-CHAN 1:1 8MSOP

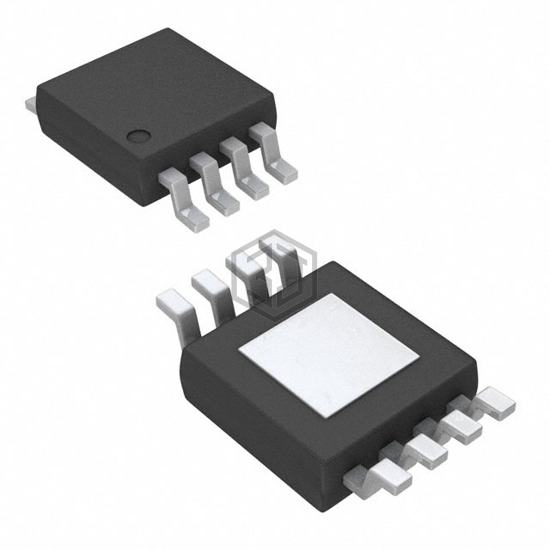

PI5PD2068UEEX is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 6,627
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.1A |
| Rds On (Typ) | 70mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP-EP |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
PI5PD2068UEEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI5PD2069WEX | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8SOIC | 100% | View |
| PI5PD2069UEEX | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8MSOP | 100% | View |
| PI5PD2069UEE | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8MSOP | 100% | View |
| TPS2001EDGKR | Texas Instruments | 2-A LOADING, 2.7-V TO 5.5-V, 70- | 98% | View |
| TPS4HC120AQDGQRQ1 | Texas Instruments | AUTOMOTIVE, FOUR-CHANNEL 120M SM | 96% | View |
| BTS4130QGAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-20 | 63% | View |
Submit your RFQ for PI5PD2068UEEX and get a quote within 24 hours.
