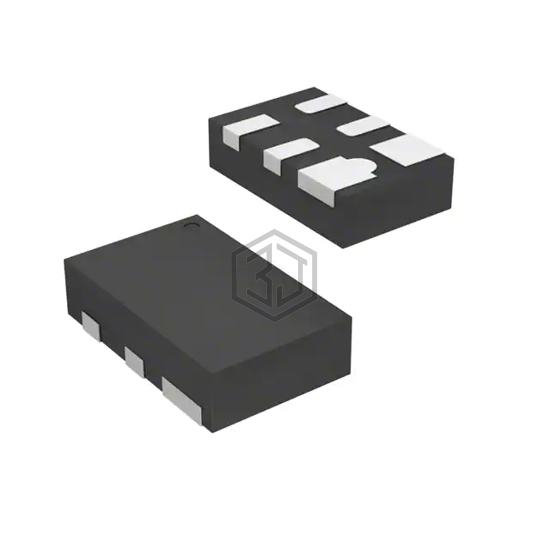

IC SWITCH SPDT 0.8 OHM 6-UDFN
PI5A4157ZUEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH SPDT 0.8 OHM 6-UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 7,204
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 18ns, 20ns |
| -3db Bandwidth | 150MHz |
| Charge Injection | 35pC |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-UDFN (1x1) |
PI5A4157ZUEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI5A4157CEX | Diodes Incorporated | IC SWITCH SINGLE SPDT SC70-6 | 100% | View |
| M74HC4051TTR | STMicroelectronics | IC MUX/DEMUX 8X1 16TSSOP | 72% | View |
| MAX4714ELT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 6UDFN | 60% | View |
| MAX4716EXK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SC70-5 | 60% | View |
| MAX4639EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TSSOP | 55% | View |
| MAX4639ETE+ | Analog Devices Inc./Maxim Integrated | 3.5OHM, SINGLE 8:1 AND DUAL 4:1, | 55% | View |
Submit your RFQ for PI5A4157ZUEX and get a quote within 24 hours.
