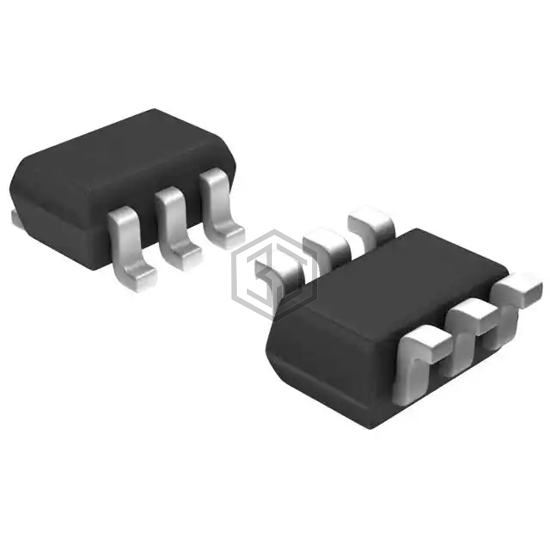

IC SWITCH SINGLE SPDT SC70-6
PI5A4157CEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH SINGLE SPDT SC70-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 2,571
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 18ns, 20ns |
| -3db Bandwidth | 150MHz |
| Charge Injection | 35pC |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363-6 (SC-70) |
