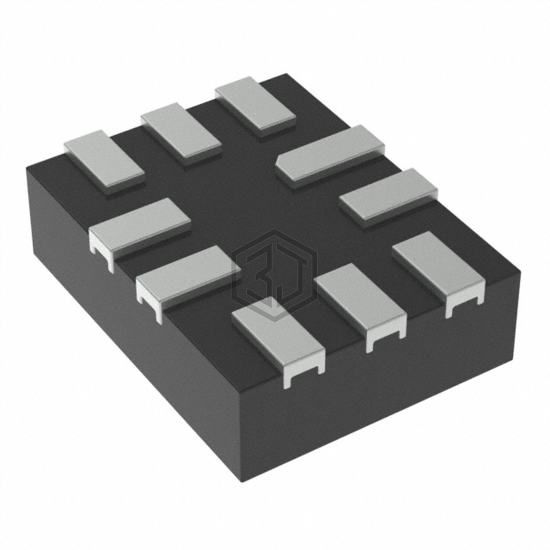

IC SWITCH DUAL SPDT 135QFN
PI3A2268ZMEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPDT 135QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 1,659
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.2V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 13ns, 12ns |
| -3db Bandwidth | 84MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -110dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.4x1.8) |
PI3A2268ZMEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI3A223ZMEX | Diodes Incorporated | IC SWITCH DUAL SPDT 10UQFN | 100% | View |
| PI3A412ZHEX | Diodes Incorporated | IC SWITCH QUAD SPDT 16TQFN | 91% | View |
| TS5A23159DGSR | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 81% | View |
| TS5A23159RSER | Texas Instruments | IC SWITCH DUAL SPDT 10UQFN | 81% | View |
| TS5A23159DGST | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 81% | View |
| ADG741BKSZ5-REEL7 | Analog Devices Inc. | IC SWITCH SPST SC70-5 | 52% | View |
