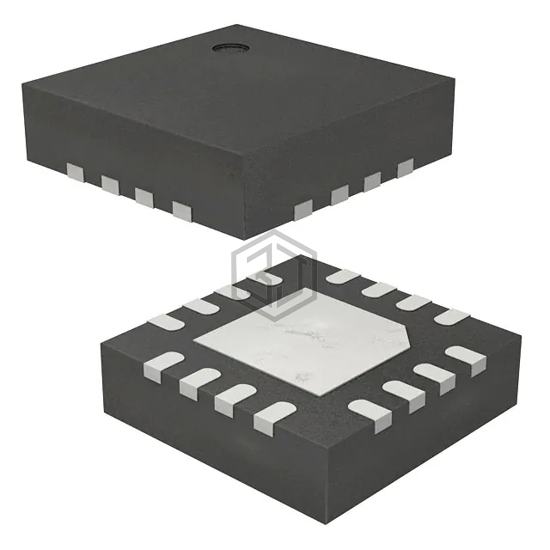

IC SWITCH QUAD SPDT 16TQFN
PI3A412ZHEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH QUAD SPDT 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN Exposed Pad, number of circuits 4.
In Stock: 1,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 4.2V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 13ns, 38ns |
| -3db Bandwidth | 78MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -97dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TS5A23159DGSR | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 72% | View |
| TS5A23159RSERG4 | Texas Instruments | IC SWITCH DUAL SPDT 10UQFN | 72% | View |
| TS5A23159DGSRG4 | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 72% | View |
| TS5A23159DGSTG4 | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 72% | View |
| SN74LV4053ATDRQ1 | Texas Instruments | IC MUX/DEMUX TRIPLE 2X1 16SOIC | 56% | View |
| SN74LV4053ARGYR | Texas Instruments | IC MUX/DEMUX TRIPLE 2X1 16VQFN | 56% | View |
Submit your RFQ for PI3A412ZHEX and get a quote within 24 hours.
