MOSFET BVDSS: 25V-30V POWERDI333

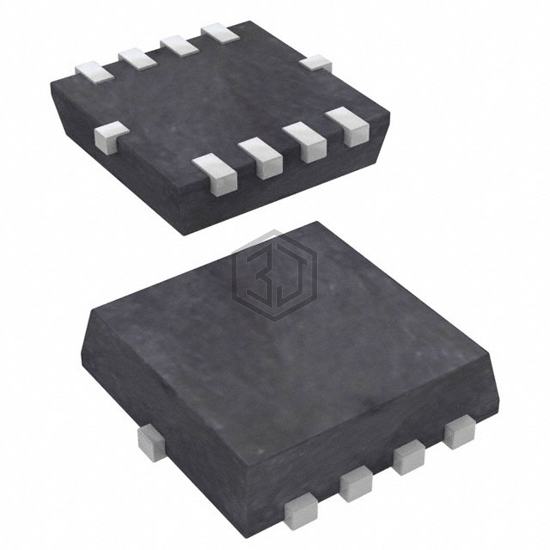

DMT3020LDV-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 25V-30V POWERDI333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 900mW (Ta).
In Stock: 4,415
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Tc) |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 393pF @ 15V |
| Power - Max | 900mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PowerDI3333-8 (Type UXC) |
Submit your RFQ for DMT3020LDV-7 and get a quote within 24 hours.
