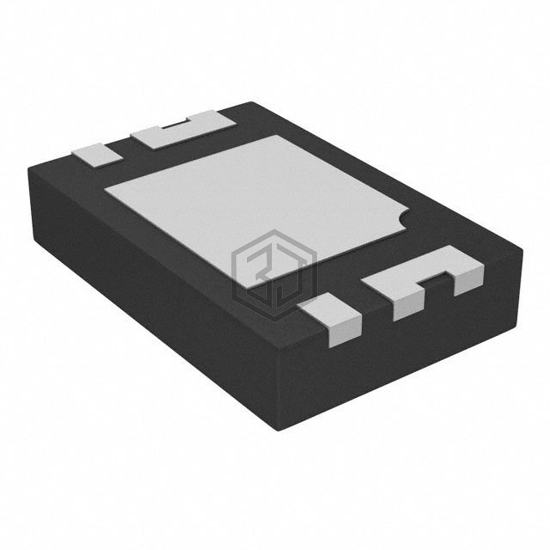

MOSFET 2P-CH 20V U-DFN2030-6
DMP2100UFU-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2P-CH 20V U-DFN2030-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFDFN Exposed Pad, power - max 900mW.
In Stock: 4,975
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 P-Channel (Dual) Common Drain |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5.7A |
| Rds On (Max) @ Id, Vgs | 38mOhm @ 3.5A, 10V |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 21.4nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 906pF @ 10V |
| Power - Max | 900mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | U-DFN2030-6 (Type B) |
Submit your RFQ for DMP2100UFU-7 and get a quote within 24 hours.
