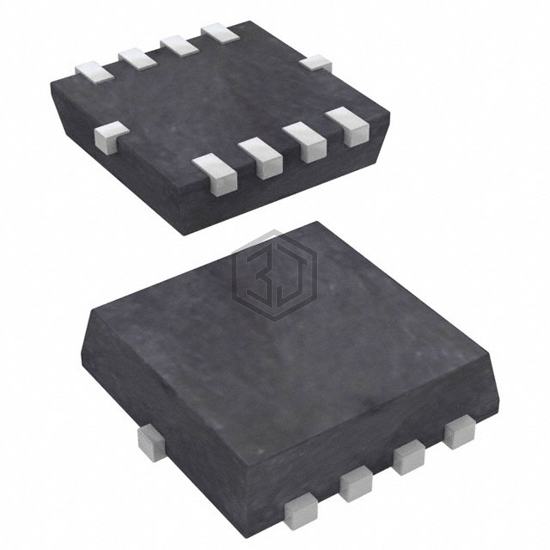

MOSFET BVDSS: 8V~24V POWERDI3333
DMP2040UND-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 8V~24V POWERDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 900mW (Ta).
In Stock: 5,914
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 P-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5.3A (Ta), 13.6A (Tc) |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 8.9A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 834pF @ 10V |
| Power - Max | 900mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PowerDI3333-8 (Type UXB) |
Submit your RFQ for DMP2040UND-7 and get a quote within 24 hours.
