MOSFET BVDSS: 25V-30V POWERDI333

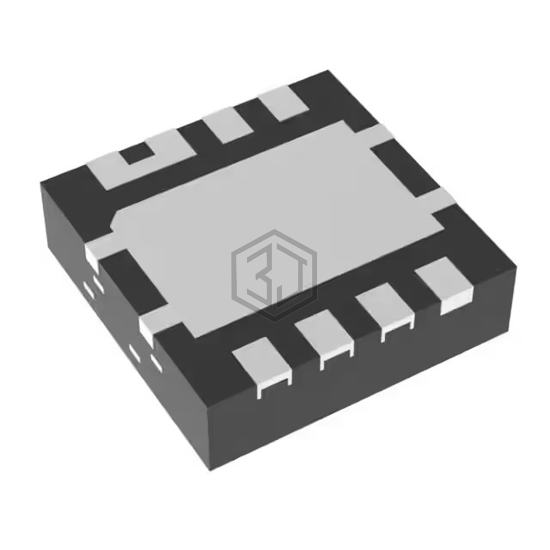

DMN3022LDG-13 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 25V-30V POWERDI333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerLDFN, power - max 1.96W (Ta).
In Stock: 9,427
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 7.6A (Ta), 15A (Tc) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 10A, 5V, 8mOhm @ 10A, 5V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA, 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.7nC @ 4.5V, 8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 481pF @ 15V, 996pF @ 15V |
| Power - Max | 1.96W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerLDFN |
| Supplier Device Package | PowerDI3333-8 (Type D) |
Submit your RFQ for DMN3022LDG-13 and get a quote within 24 hours.
