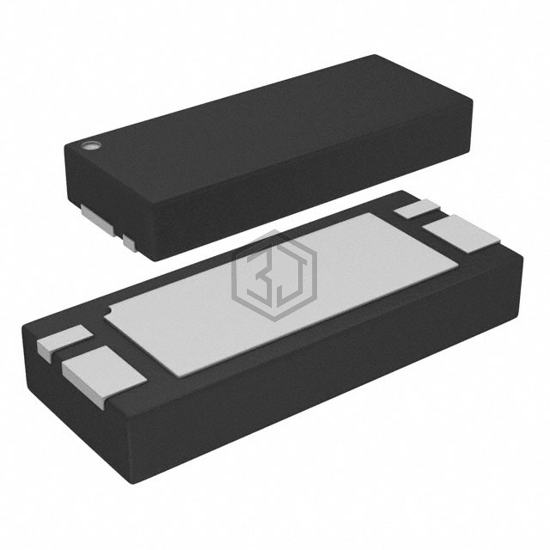

MOSFET 2N-CH 20V 12.2A DFN2050-4
DMN2011UFX-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2N-CH 20V 12.2A DFN2050-4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-VFDFN Exposed Pad, power - max 2.1W.
In Stock: 5,006
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 12.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 10A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 56nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2248pF @ 10V |
| Power - Max | 2.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-VFDFN Exposed Pad |
| Supplier Device Package | V-DFN2050-4 |
Submit your RFQ for DMN2011UFX-7 and get a quote within 24 hours.
