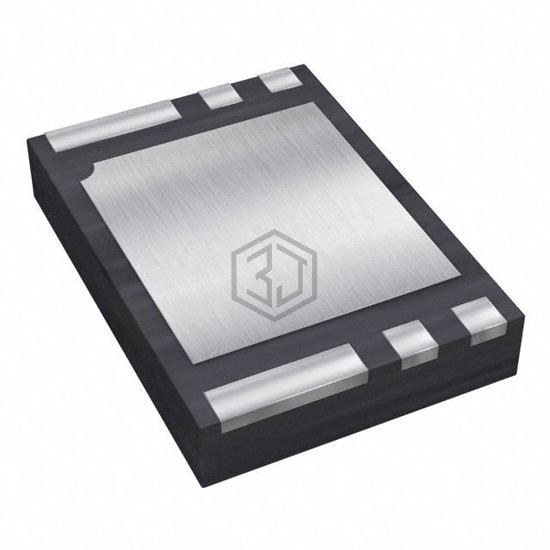

MOSFET 2N-CH 20V 11A U-DFN2535-6
DMN2010UDZ-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2N-CH 20V 11A U-DFN2535-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad, power - max 700mW.
In Stock: 1,621
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 24V |
| Current - Continuous Drain (Id) @ 25°C | 11A |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 5.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 33.2nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 2665pF @ 10V |
| Power - Max | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2535-6 |
Submit your RFQ for DMN2010UDZ-7 and get a quote within 24 hours.
