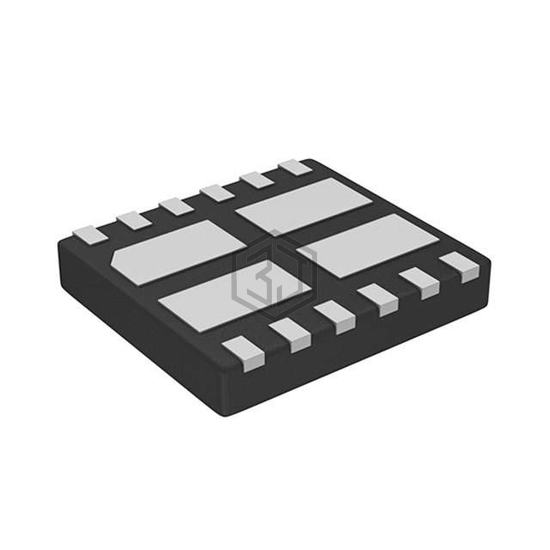

MOSFET 4 N-CH 14.8A VDFN5045-12
DMHT6016LFJ-13 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 4 N-CH 14.8A VDFN5045-12. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-VDFN Exposed Pad.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 4 N-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | - |
| Current - Continuous Drain (Id) @ 25°C | 14.8A (Ta) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 864pF @ 30V |
| Power - Max | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VDFN Exposed Pad |
| Supplier Device Package | V-DFN5045-12 |
Submit your RFQ for DMHT6016LFJ-13 and get a quote within 24 hours.
