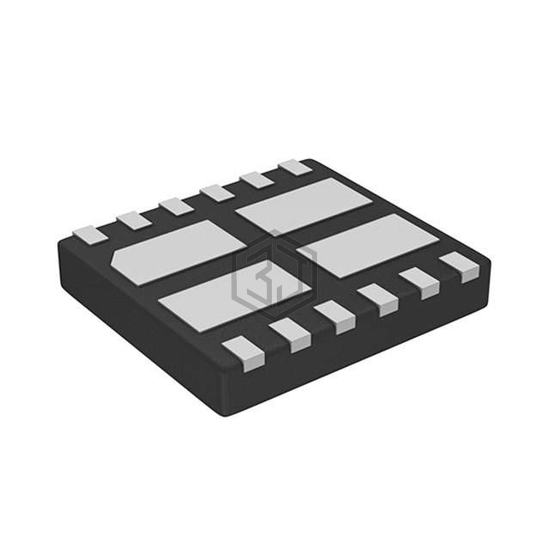

MOSFET 2N/2P-CH 100V DFN5045-12
DMHC10H170SFJ-13 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2N/2P-CH 100V DFN5045-12. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-VDFN Exposed Pad, power - max 2.1W.
In Stock: 8,165
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N and 2 P-Channel (Half Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 2.9A, 2.3A |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.7nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1167pF @ 25V |
| Power - Max | 2.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VDFN Exposed Pad |
| Supplier Device Package | V-DFN5045-12 |
Submit your RFQ for DMHC10H170SFJ-13 and get a quote within 24 hours.
