MOSFET 2N-CH 20V 6.1A DFN

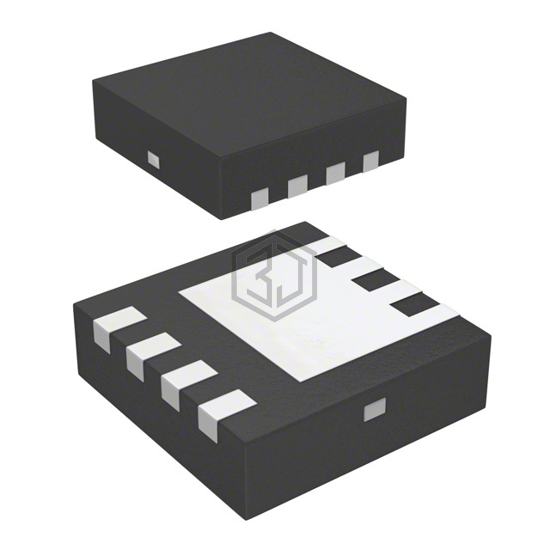

DMG8601UFG-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2N-CH 20V 6.1A DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerUDFN, power - max 920mW.
In Stock: 9,917
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 6.1A |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 6.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.05V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 143pF @ 10V |
| Power - Max | 920mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerUDFN |
| Supplier Device Package | U-DFN3030-8 |
Submit your RFQ for DMG8601UFG-7 and get a quote within 24 hours.
