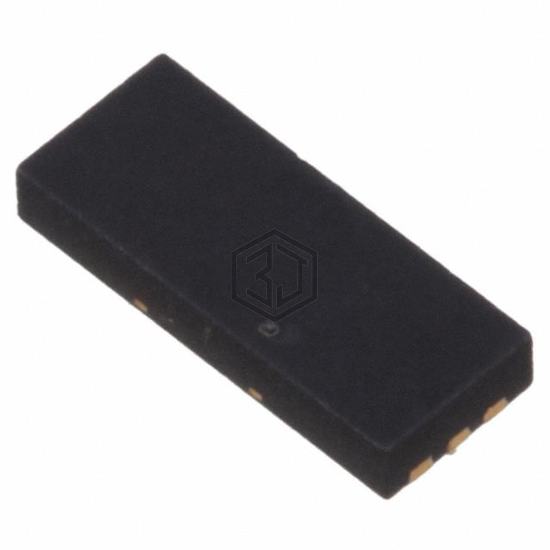

MOSFET 2N-CH 24V 6.5A 6DFN
DMG5802LFX-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2N-CH 24V 6.5A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VFDFN Exposed Pad, power - max 980mW.
In Stock: 3,039
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 24V |
| Current - Continuous Drain (Id) @ 25°C | 6.5A |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 6.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 31.3nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1066.4pF @ 15V |
| Power - Max | 980mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VFDFN Exposed Pad |
| Supplier Device Package | W-DFN5020-6 |
Submit your RFQ for DMG5802LFX-7 and get a quote within 24 hours.
