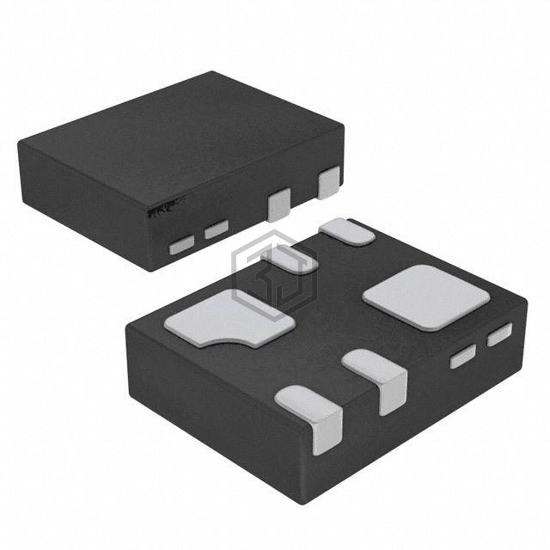

MOSFET N/P-CHA 30V 1.1A DFN1310
DMC3730UFL3-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET N/P-CHA 30V 1.1A DFN1310. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-XFDFN Exposed Pad, power - max 390mW.
In Stock: 11,394
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel Complementary |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 1.1A, 700mA |
| Rds On (Max) @ Id, Vgs | 460mOhm @ 200mA, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.9nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 65.9pF @ 25V |
| Power - Max | 390mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | X2-DFN1310-6 (Type B) |
Submit your RFQ for DMC3730UFL3-7 and get a quote within 24 hours.
