MOSFET BVDSS: 8V~24V U-DFN2020-6

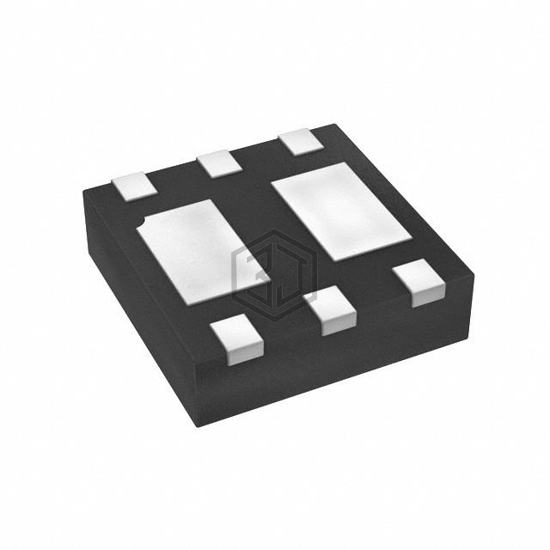

DMC2025UFDBQ-13 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 8V~24V U-DFN2020-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad, power - max 700mW (Ta).
In Stock: 3,005
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel Complementary |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta), 3.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 4A, 4.5V, 75mOhm @ 2.9A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA, 1.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12.3nC @ 10V, 15nC @ 8V |
| Input Capacitance (Ciss) (Max) @ Vds | 486pF @ 10V, 642pF @ 10V |
| Power - Max | 700mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-6 (Type B) |
Submit your RFQ for DMC2025UFDBQ-13 and get a quote within 24 hours.
