MOSFET BVDSS: 8V 24V U-DFN2020-6

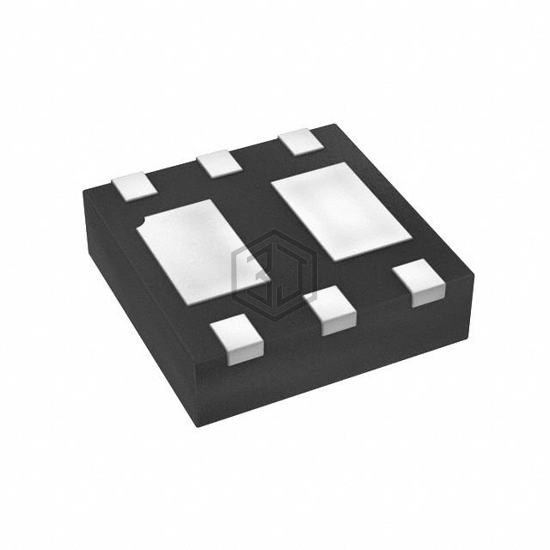

DMC1030UFDB-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 8V 24V U-DFN2020-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad, power - max 1.36W (Ta).
In Stock: 1,909
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel Complementary |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 5.1A (Ta), 3.9A (Ta) |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 4.6A, 4.5V, 59mOhm @ 3.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12.2nC @ 4.5V, 13nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1003pF @ 6V, 1028pF @ 6V |
| Power - Max | 1.36W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-6 (Type B) |
Submit your RFQ for DMC1030UFDB-7 and get a quote within 24 hours.
