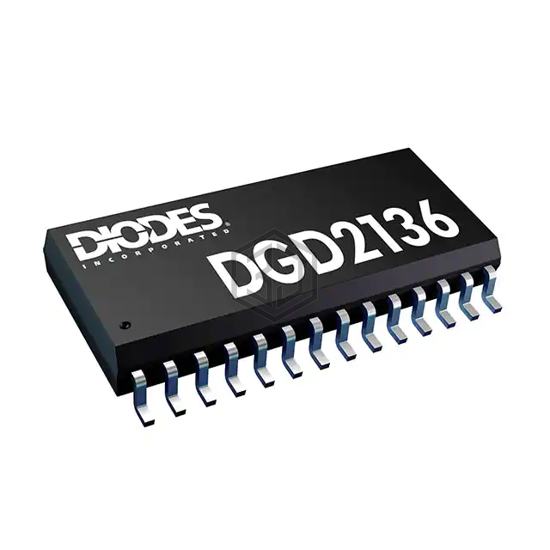

IC GATE DRVR HALF-BRIDGE 28SO
DGD2136S28-13 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRVR HALF-BRIDGE 28SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 28-SOIC (0.295", 7.50mm Width).
In Stock: 6,279
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 90ns, 35ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SO |
DGD2136S28-13 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AUIRS2334S | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 20SOIC | 97% | View |
| 98-0036 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 96% | View |
| IRS2330JPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 96% | View |
| IRS23364DJTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 95% | View |
| IR21363JPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 95% | View |
| IRS23364DSTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 95% | View |
Submit your RFQ for DGD2136S28-13 and get a quote within 24 hours.
