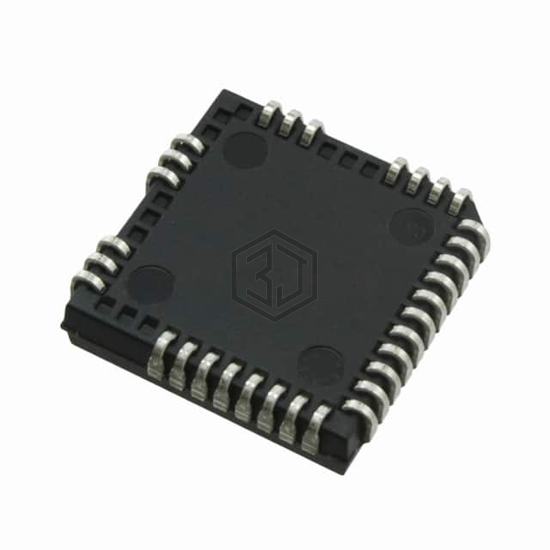

IC GATE DRVR HALF-BRIDGE 44PLCC
IRS23364DJTRPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 44PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 11.5V ~ 20V, package / case 44-LCC (J-Lead), 32 Leads.
In Stock: 6,932
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 11.5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 125ns, 50ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead), 32 Leads |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR21363STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 100% | View |
| IR21363JPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 100% | View |
| IRS23364DSTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 100% | View |
| IR21364JTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 100% | View |
| IR21362S | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 100% | View |
| IR21362JTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 100% | View |
Submit your RFQ for IRS23364DJTRPBF and get a quote within 24 hours.
