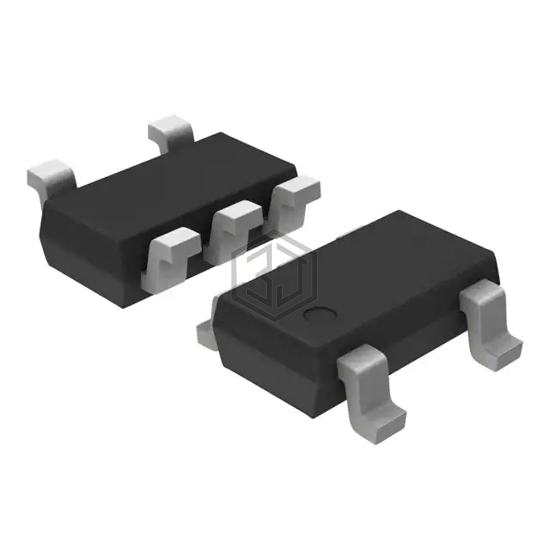

HV GATE DRIVER TSOT25 T&R 3K
DGD0211CWT-7 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. HV GATE DRIVER TSOT25 T&R 3K. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case SOT-23-5 Thin, TSOT-23-5.
In Stock: 4,593
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.9A, 1.8A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-25 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DGD0216WT-7 | Diodes Incorporated | IC GATE DRVR LOW-SIDE TSOT25 | 100% | View |
| DGD0215WT-7 | Diodes Incorporated | IC GATE DRVR LOW-SIDE TSOT25 | 100% | View |
| TC1412NEUA | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 97% | View |
| TPS2818MDBVREP | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 94% | View |
| IR2125STRPBF | Infineon Technologies | IC GATE DRVR HIGH-SIDE 16SOIC | 81% | View |
| IR2125SPBF | Infineon Technologies | IC GATE DRVR HIGH-SIDE 16SOIC | 81% | View |
Submit your RFQ for DGD0211CWT-7 and get a quote within 24 hours.
