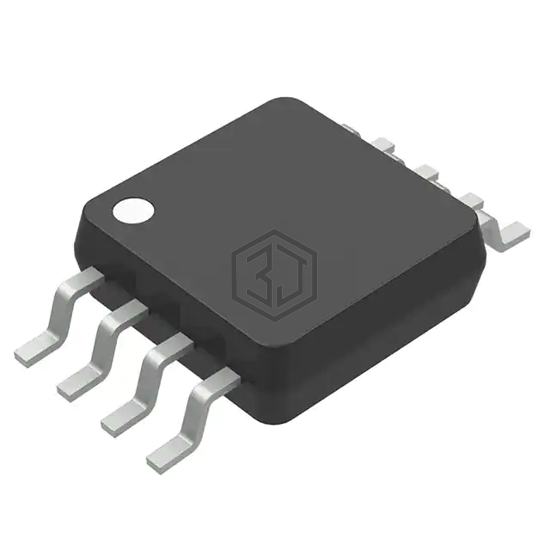

IC GATE DRVR LOW-SIDE 8MSOP
TC1412NEUA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 16V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 2,777
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 16V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 18ns, 18ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC1412NEOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| TC1412EUA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 100% | View |
| TC4432EOA713 | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 92% | View |
| MCP14A0152T-E/CH | Microchip Technology | IC GATE DRVR HI/LOW SIDE SOT23-6 | 91% | View |
| IR2125STRPBF | Infineon Technologies | IC GATE DRVR HIGH-SIDE 16SOIC | 83% | View |
| IR2125SPBF | Infineon Technologies | IC GATE DRVR HIGH-SIDE 16SOIC | 83% | View |
Submit your RFQ for TC1412NEUA and get a quote within 24 hours.
