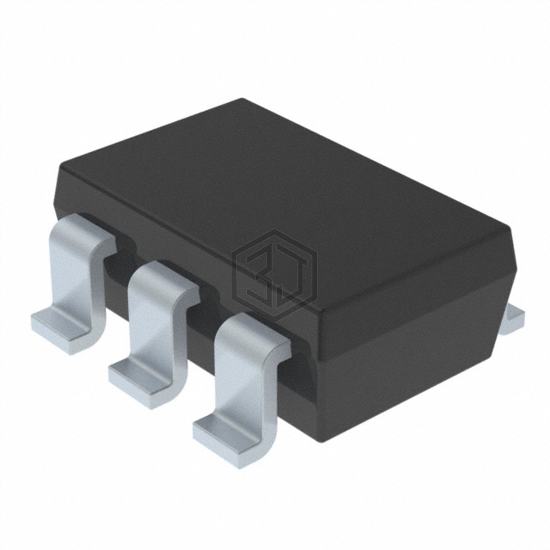

IC OFFLINE SWITCH FLYBACK SOT26
AP3302AEV1 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. IC OFFLINE SWITCH FLYBACK SOT26. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10V ~ 28V, package / case SOT-23-6.
In Stock: 9,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15.8 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | 120kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-26 |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK6766K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 100% | View |
| LNK6765K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 100% | View |
| AP3302K6TR-G1 | Diodes Incorporated | IC OFFLINE CONV FLYBACK SOT26 | 100% | View |
| LNK6776K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 100% | View |
| LNK6779K | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 100% | View |
| LNK6778K | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 100% | View |
Submit your RFQ for AP3302AEV1 and get a quote within 24 hours.
