IC OFFLINE SWITCH FLYBACK 12ESOP

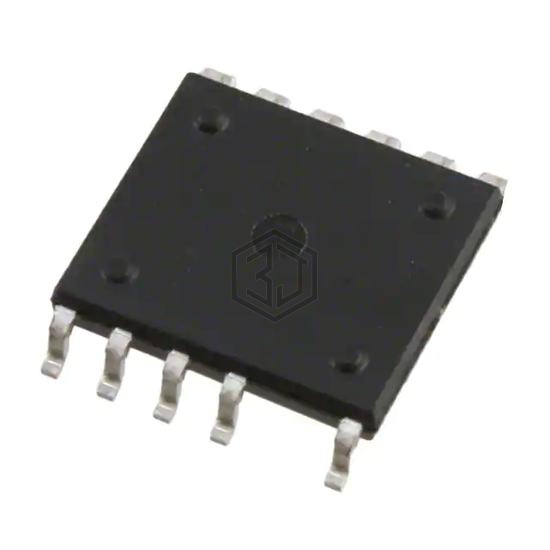

LNK6776K-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 12ESOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad, power (watts) 48 W.
In Stock: 22,750
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 48 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad |
| Supplier Device Package | 12-ESOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK6766K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 99% | View |
| LNK6765K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 95% | View |
| LNK6767K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 93% | View |
| LNK6663K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 90% | View |
| LNK6669K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 86% | View |
| VIPER013HS | STMicroelectronics | IC OFFLINE SW MULT TOP 10SSOP | 69% | View |
Submit your RFQ for LNK6776K-TL and get a quote within 24 hours.
