IC OFFLINE SWITCH FLYBACK 7SO

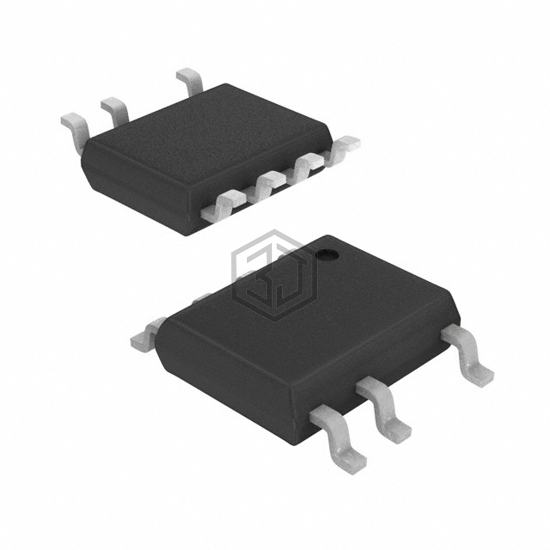

AP3106MTR-G1 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. IC OFFLINE SWITCH FLYBACK 7SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10V ~ 25V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.
In Stock: 3,509
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SO |
| Mounting Type | Surface Mount |
AP3106MTR-G1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP3125BKTR-G1 | Diodes Incorporated | IC OFFLINE SWITCH FLYBACK SOT26 | 100% | View |
| AP3105RKTR-G1 | Diodes Incorporated | IC OFFLINE SW FLYBACK SOT23-6 | 100% | View |
| AP3105FKTR-G1 | Diodes Incorporated | IC OFFLINE SW FLYBACK SOT23-6 | 100% | View |
| AP3105NAKTR-G1 | Diodes Incorporated | IC OFFLINE SW FLYBACK SOT23-6 | 100% | View |
| NCP12510BSN65T1G | onsemi | IC OFFLINE SWITCH FLYBACK 6TSOP | 97% | View |
| RT7736LGE | Richtek USA Inc. | IC OFFLINE SW FLYBACK SOT23-6 | 96% | View |
Submit your RFQ for AP3106MTR-G1 and get a quote within 24 hours.
