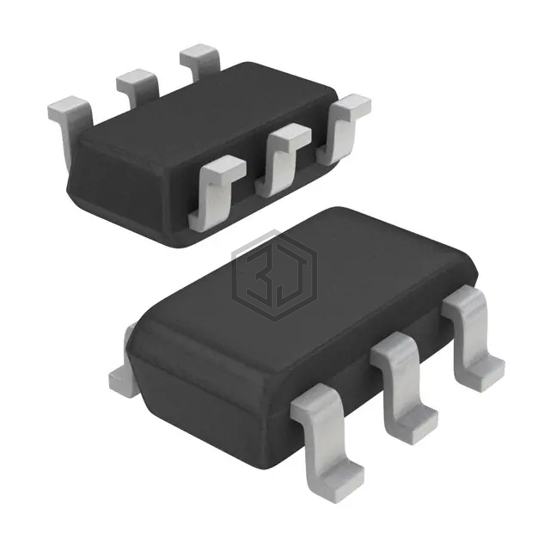

IC OFFLINE SW FLYBACK SOT23-6
AP3105RKTR-G1 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. IC OFFLINE SW FLYBACK SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 10V ~ 25V, package / case SOT-23-6.
In Stock: 8,451
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 15.5 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Mounting Type | Surface Mount |
AP3105RKTR-G1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP3125CMKTR-G1 | Diodes Incorporated | IC OFFLINE SWITCH FLYBACK SOT26 | 100% | View |
| AP3125BKTR-G1 | Diodes Incorporated | IC OFFLINE SWITCH FLYBACK SOT26 | 100% | View |
| NCP1236BD65R2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 96% | View |
| NCP1247CD065R2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 95% | View |
| TEA1833TS/1H | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK SC74 | 94% | View |
| TEA1833LTS/1H | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK SC74 | 94% | View |
Submit your RFQ for AP3105RKTR-G1 and get a quote within 24 hours.
