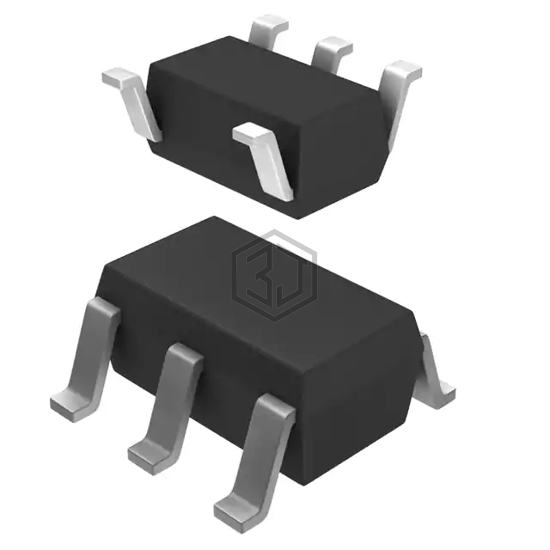

IC PWR SWITCH N-CHAN 1:1 SOT23-5
AP2822AKTR-G1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SC-74A, SOT-753.
In Stock: 4,105
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 85mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
AP2822AKTR-G1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STMPS2141TTR | STMicroelectronics | IC PWR SWITCH N-CHAN 1:1 8MSOP | 100% | View |
| TPS2530DBVT | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 SOT23-5 | 100% | View |
| MIC2025-1YMM | Microchip Technology | IC PWR SWITCH N-CHAN 1:1 8MSOP | 100% | View |
| RT9702GB | Richtek USA Inc. | IC PWR SWITCH N-CHAN 1:1 SOT23-5 | 95% | View |
| TPS2053BDR | Texas Instruments | IC PWR SWTCH N-CH 1:2/1:1 16SOIC | 81% | View |
| TPS2044BDR | Texas Instruments | IC PWR SWITCH N-CH 2X1:2 16SOIC | 75% | View |
Submit your RFQ for AP2822AKTR-G1 and get a quote within 24 hours.
