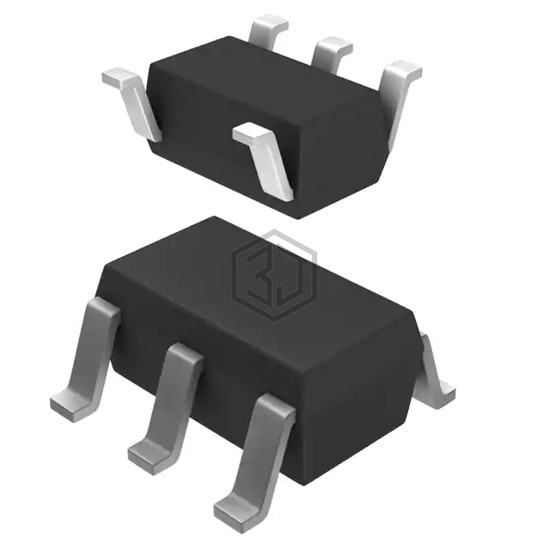

IC PWR SWITCH N-CHAN 1:1 SOT23-5
AP2822AKATR-G1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SC-74A, SOT-753.
In Stock: 5,502
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 85mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
AP2822AKATR-G1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC2075-2YMM-TR | Microchip Technology | IC PWR SWITCH N-CHAN 1:1 8MSOP | 100% | View |
| TPS2051DG4 | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 8SOIC | 100% | View |
| TPS2042BDRBT | Texas Instruments | IC PWR SWITCH N-CHAN 1:2 8SON | 88% | View |
| BTS4300SGAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-8 | 80% | View |
| MIC2027-1YM-TR | Microchip Technology | IC PWR SWITCH N-CH 2X1:2 16SOIC | 75% | View |
| R5540K004D-TR | Nisshinbo Micro Devices Inc. | IC PWR SWITCH N-CH 1:1 DFN1010 | 74% | View |
Submit your RFQ for AP2822AKATR-G1 and get a quote within 24 hours.
