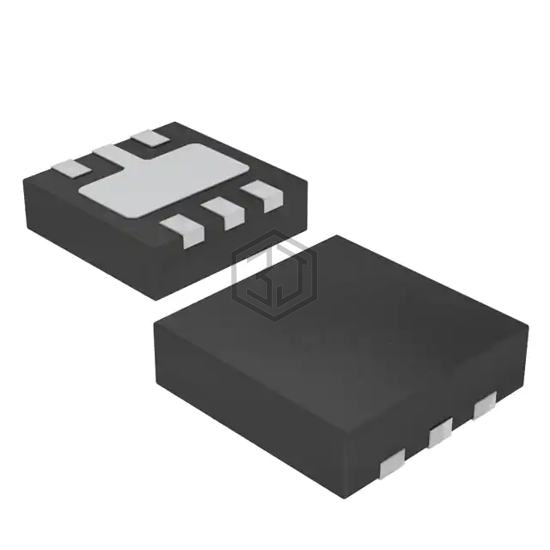

IC PWR SWITCH P-CH 1:1 6DFN2020
AP2501SN-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CH 1:1 6DFN2020. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UDFN Exposed Pad.
In Stock: 881
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A |
| Rds On (Typ) | 70mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | U-DFN2020-6 |
| Package / Case | 6-UDFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP22804BW5-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 SOT25 | 100% | View |
| AP2511S-13 | Diodes Incorporated | IC PWR SWITCH P-CHANNEL 1:1 8SO | 100% | View |
| AP22804AM8-13 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 8MSOP | 100% | View |
| AP22804AW5-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 SOT25 | 100% | View |
| RT2528GSP | Richtek USA Inc. | IC PWR SWITCH P-CHANNEL 1:1 8SOP | 99% | View |
| MIC2039BYMT-TR | Microchip Technology | IC PWR SWITCH P-CHAN 1:1 6TDFN | 99% | View |
Submit your RFQ for AP2501SN-7 and get a quote within 24 hours.
