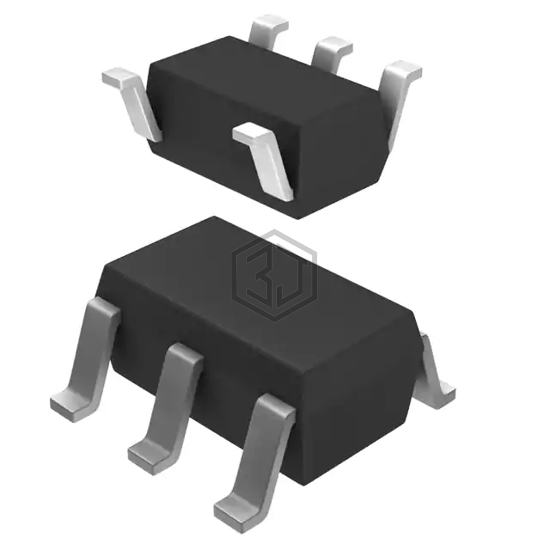

IC PWR SWITCH P-CHAN 1:1 SOT25
AP22802BW5-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHAN 1:1 SOT25. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SC-74A, SOT-753.
In Stock: 4,430
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Rds On (Typ) | 50mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-25 |
| Package / Case | SC-74A, SOT-753 |
AP22802BW5-7 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP22818AKEWT-7 | Diodes Incorporated | USB POWER SWITCH TSOT25 T&R 3K | 100% | View |
| AP2301AS-13 | Diodes Incorporated | IC PWR SWITCH P-CHANNEL 1:1 8SO | 100% | View |
| TPS22916CNYFPT | Texas Instruments | IC PWR SWITCH P-CHAN 1:1 4DSBGA | 100% | View |
| AP2411SN-7 | Diodes Incorporated | IC PWR SWITCH P-CH 1:1 6DFN2020 | 100% | View |
| AP22818BKWT-7 | Diodes Incorporated | USB POWER SWITCH TSOT25 T&R 3K | 100% | View |
| NCP380HMU20AATBG | onsemi | IC PWR SWITCH P-CHAN 1:1 6UDFN | 99% | View |
Submit your RFQ for AP22802BW5-7 and get a quote within 24 hours.
