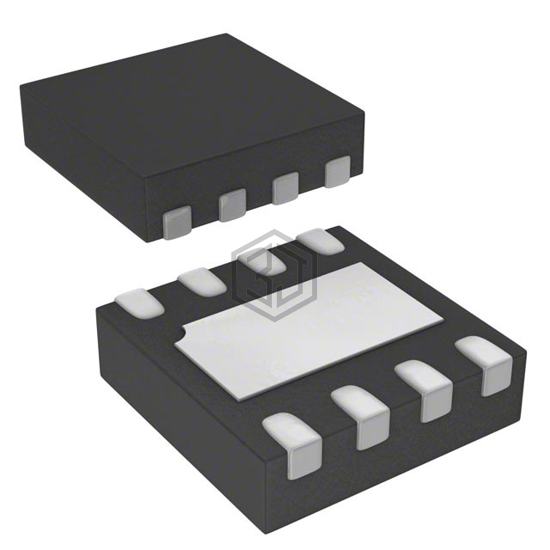

IC PWR SWITCH P-CHAN 1:2 8UDFN
AP2142AFGEG-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHAN 1:2 8UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 8-UDFN Exposed Pad.
In Stock: 5,201
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | USB Switch |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 85mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | U-DFN3030-8 (Type E) |
| Package / Case | 8-UDFN Exposed Pad |
AP2142AFGEG-7 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP2152SG-13 | Diodes Incorporated | IC PWR SWITCH P-CHANNEL 1:2 8SOP | 100% | View |
| TPS22960RSER | Texas Instruments | IC PWR SWITCH P-CHAN 1:1 8UQFN | 91% | View |
| AP2151MPG-13 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 8MSOP | 88% | View |
| MIC2013-0.5YML-TR | Microchip Technology | IC PWR SWITCH P-CHAN 1:1 6MLF | 86% | View |
| MIC2013-0.5YM5-TR | Microchip Technology | IC PWR SWITCH P-CHAN 1:1 SOT23-5 | 86% | View |
| MIC2014-0.5YM5-TR | Microchip Technology | IC PWR SWITCH P-CHAN 1:1 SOT23-5 | 86% | View |
Submit your RFQ for AP2142AFGEG-7 and get a quote within 24 hours.
