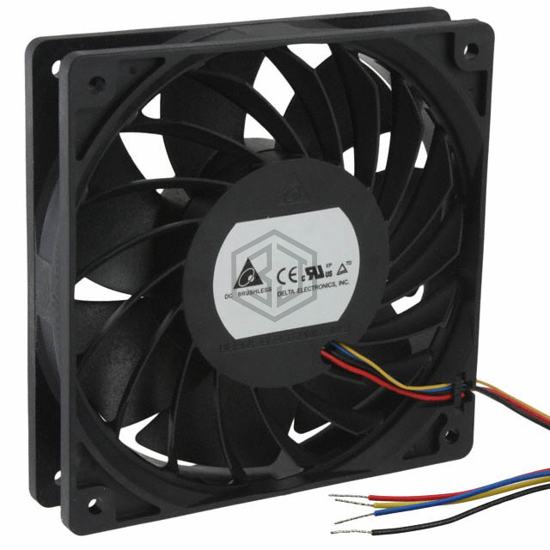

THB1224B-PM00 - Delta Electronics - DC Brushless Fans (BLDC)

THB1224B-PM00

Delta Electronics

FAN AXIAL 120X25.4MM 24VDC WIRE

THB1224B-PM00 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 120X25.4MM 24VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 120mm L x 120mm H, termination 4 Wire Leads.

In Stock: 1,194

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated24VDC
Size / DimensionSquare - 120mm L x 120mm H
Width25.40mm
Air Flow174.7 CFM (4.89m³/min)
Static Pressure2.139 in H2O (532.8 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesLocked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise65.0dB(A)
Power (Watts)22.8 W
RPM8300 RPM
Termination4 Wire Leads
Ingress ProtectionIP55 - Dust Protected, Water Resistant
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, cURus, TUV
Weight0.437 lb (198.00 g)

Frequently Asked Questions

THB1224B-PM00 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 120X25.4MM 24VDC WIRE

The operating temperature range of THB1224B-PM00 is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of THB1224B-PM00 is 24VDC.

The size of THB1224B-PM00 is Square - 120mm L x 120mm H.
