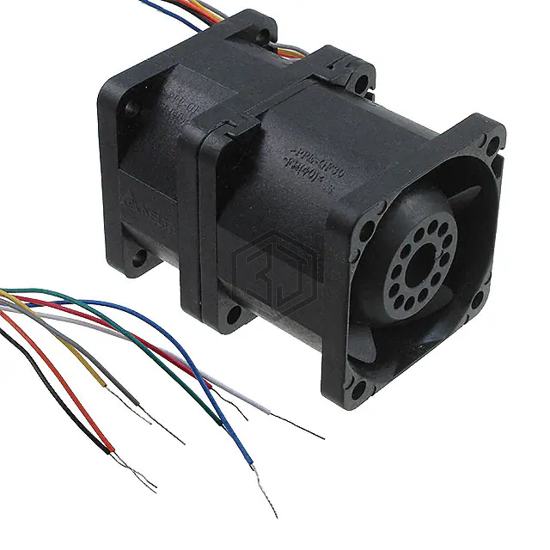

FAN AXIAL DUAL 40X56MM 12VDC
GFC0412DS-CMA5 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL DUAL 40X56MM 12VDC. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 40mm L x 40mm H, termination 4 Wire Leads per Fan.
In Stock: 3,178
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 56.00mm |
| Air Flow | 25.3 CFM (0.708m³/min) |
| Static Pressure | 2.703 in H2O (673.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 64.0dB(A) |
| Power (Watts) | 10.2 W |
| RPM | 17200 Front, 15700 Rear |
| Termination | 4 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cURus, TUV |
| Weight | 0.176 lb (80.00 g) |
Submit your RFQ for GFC0412DS-CMA5 and get a quote within 24 hours.
