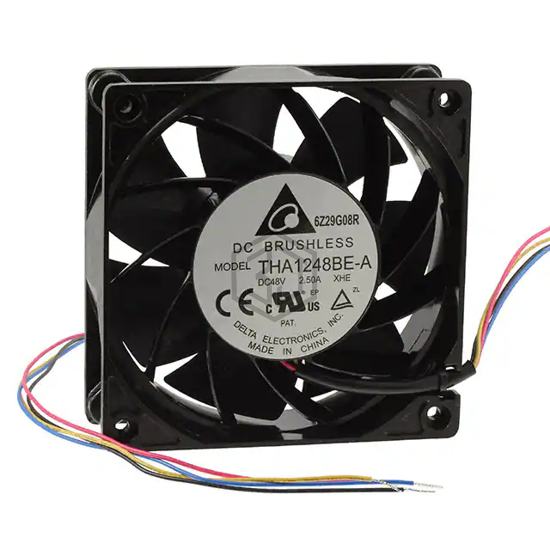

FAN AXIAL 120X38MM 48VDC WIRE
THA1248BE-AXHE is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 120X38MM 48VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 48VDC, size / dimension Square - 120mm L x 120mm H, termination 4 Wire Leads.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 302.8 CFM (8.48m³/min) |
| Static Pressure | 3.394 in H2O (845.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 73.5dB(A) |
| Power (Watts) | 80.64 W |
| RPM | 9000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cURus, TUV |
| Weight | 1.1 lbs (500.0 g) |
Submit your RFQ for THA1248BE-AXHE and get a quote within 24 hours.
