40X40X56MM 12V DC FAN W/SPEED CO

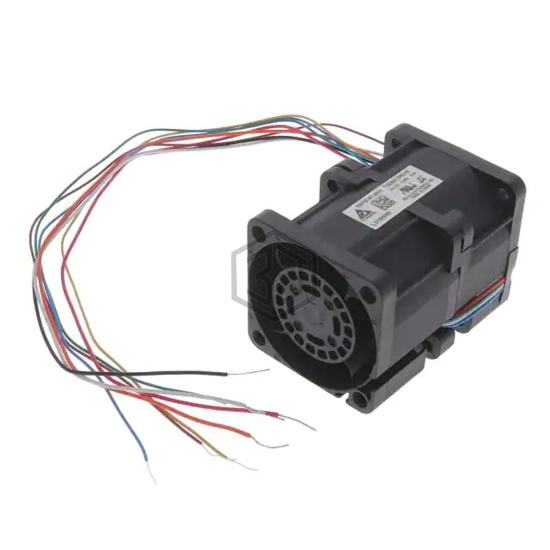

TGD0412HS-00EA8 is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. 40X40X56MM 12V DC FAN W/SPEED CO. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 40mm L x 40mm H, termination 4 Wire Leads per Fan.
In Stock: 93
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 56.00mm |
| Air Flow | 39.3 CFM (1.10m³/min) |
| Static Pressure | 5.800 in H2O (1444.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial (Dual) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 73.0dB(A) |
| Power (Watts) | 42 W |
| RPM | 27000 Front, 23000 Rear |
| Termination | 4 Wire Leads per Fan |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | 0.201 lb (91.17 g) |
Submit your RFQ for TGD0412HS-00EA8 and get a quote within 24 hours.
