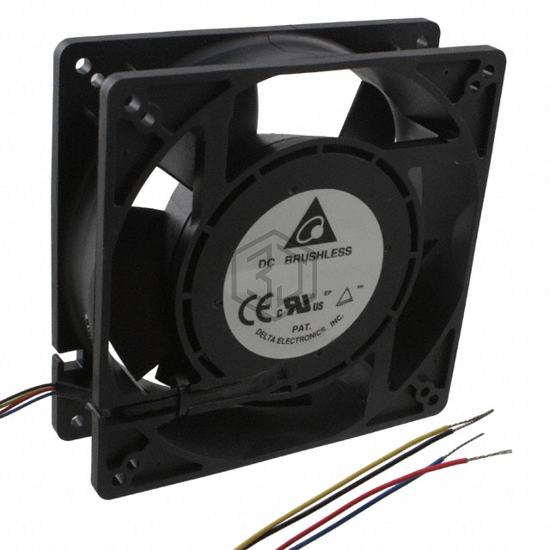

FAN AXIAL 127X38MM 48VDC WIRE
TDA1348AE-EP is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 127X38MM 48VDC WIRE. Key specifications: operating temperature -27.4 ~ 158°F (-33 ~ 70°C), voltage - rated 48VDC, size / dimension Square - 127mm L x 127mm H, termination 4 Wire Leads.
In Stock: 5,978
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 127mm L x 127mm H |
| Width | 38.00mm |
| Air Flow | 160.0 CFM (4.48m³/min) |
| Static Pressure | 1.456 in H2O (362.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 60.4dB(A) |
| Power (Watts) | 19.2 W |
| RPM | 5300 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature | -27.4 ~ 158°F (-33 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 1.1 lbs (499.0 g) |
