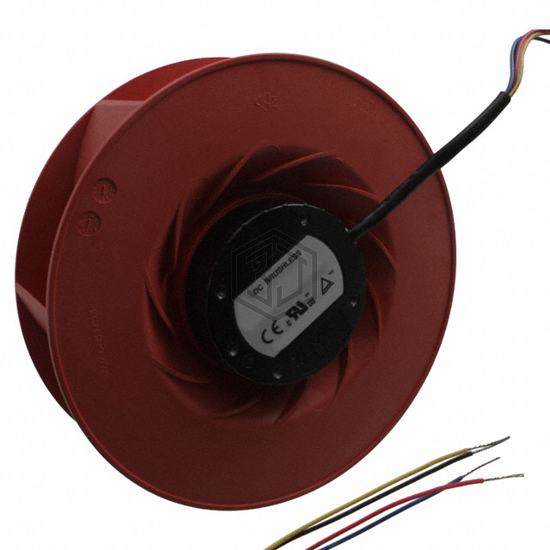

FAN IMP MTRZD 175X69MM 48VDC
TCA1748ATXHD is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN IMP MTRZD 175X69MM 48VDC. Key specifications: operating temperature -13 ~ 158°F (-25 ~ 70°C), voltage - rated 48VDC, size / dimension Round - 175mm Dia, termination 4 Wire Leads.
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Voltage - Rated | 48VDC |
| Size / Dimension | Round - 175mm Dia |
| Width | 69.00mm |
| Air Flow | 428.0 CFM (11.98m³/min) |
| Static Pressure | 1.957 in H2O (487.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 70.8dB(A) |
| Power (Watts) | 76.8 W |
| RPM | 4000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Operating Temperature | -13 ~ 158°F (-25 ~ 70°C) |
| Approval Agency | CE, cURus, TUV |
| Weight | 1.5 lbs (670.0 g) |
Submit your RFQ for TCA1748ATXHD and get a quote within 24 hours.
