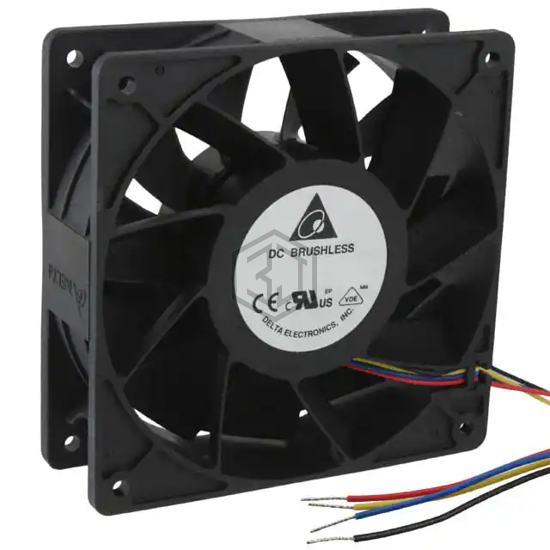

FAN AXIAL 120X38MM 48VDC WIRE
PFB1248UHE-EP is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 120X38MM 48VDC WIRE. Key specifications: operating temperature -40 ~ 167°F (-40 ~ 75°C), voltage - rated 48VDC, size / dimension Square - 120mm L x 120mm H, termination 4 Wire Leads.
In Stock: 1,493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 243.7 CFM (6.82m³/min) |
| Static Pressure | 1.311 in H2O (326.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) |
| Noise | 66.0dB(A) |
| Power (Watts) | 42.24 W |
| RPM | 5300 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature | -40 ~ 167°F (-40 ~ 75°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.838 lb (380.11 g) |
Submit your RFQ for PFB1248UHE-EP and get a quote within 24 hours.
